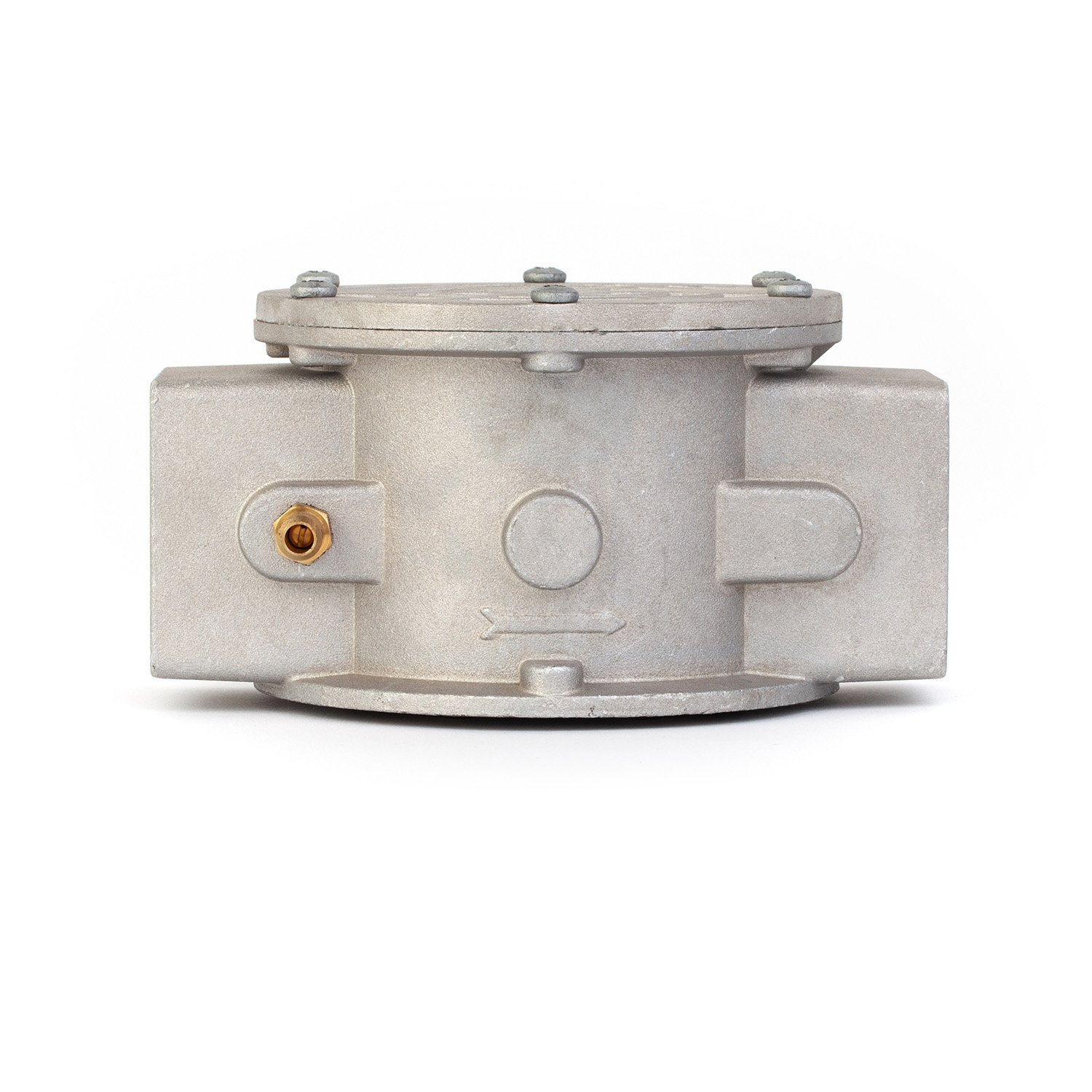

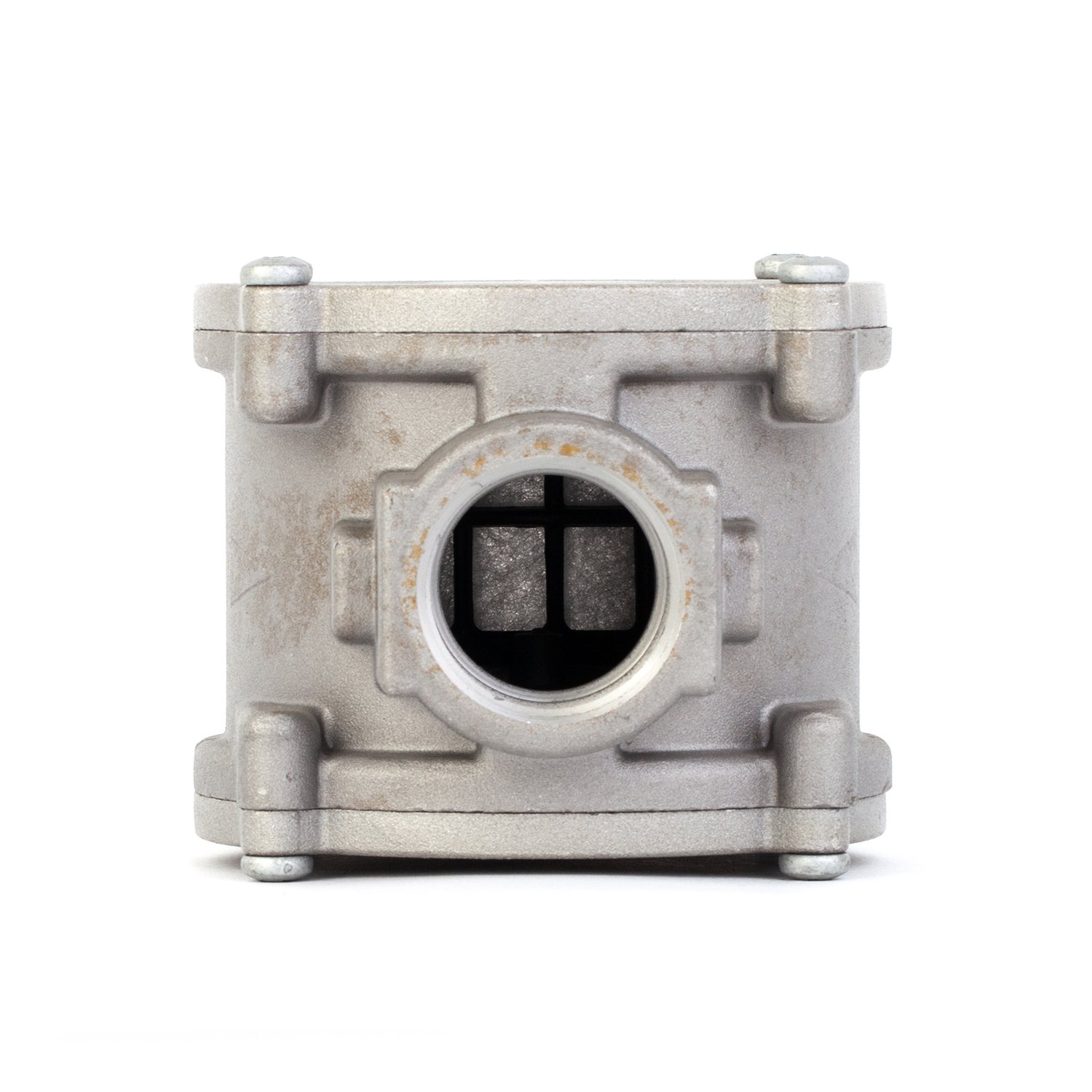

gas filter F02/F03

gas filter F02/F03

Detail Description


It is a device that prevents the passage of a particles of dust or debris brought by the gas, protecting the regulation and safety device.

HPF gas filters have a large filtering component made of synthetic washable material which is fully removable for complete inspection and cleaning.

Special O-Ring sealing; resistant to third gas family; make easy removal.

Technical data

  • Use: not aggressive gases of the 3 families (dry gases)
  • working pressure: 6bar
  • Environment temperature:-15 ~60 ℃


Die-cast aluminium

nylon 30% glass fibre

NBR rubber


Overall dimensions in mm

Type Threaded sizes A B Filtering surface (mm2)

HP-F01 DN15 70 63 3700

HP-F01 DN20 70 63 3700

HP-F01 DN25 70 63 3700

HP-F02 DN15 120 72 4400

HP-F02 DN20 120 72 4400

HP-F02 DN25 120 72 4400

HP-F03 DN25M 160 87 16800

HP-F03 DN32 160 87 16800

HP-F03 DN40 160 87 16800

HP-F03 DN50 160 110 25400
