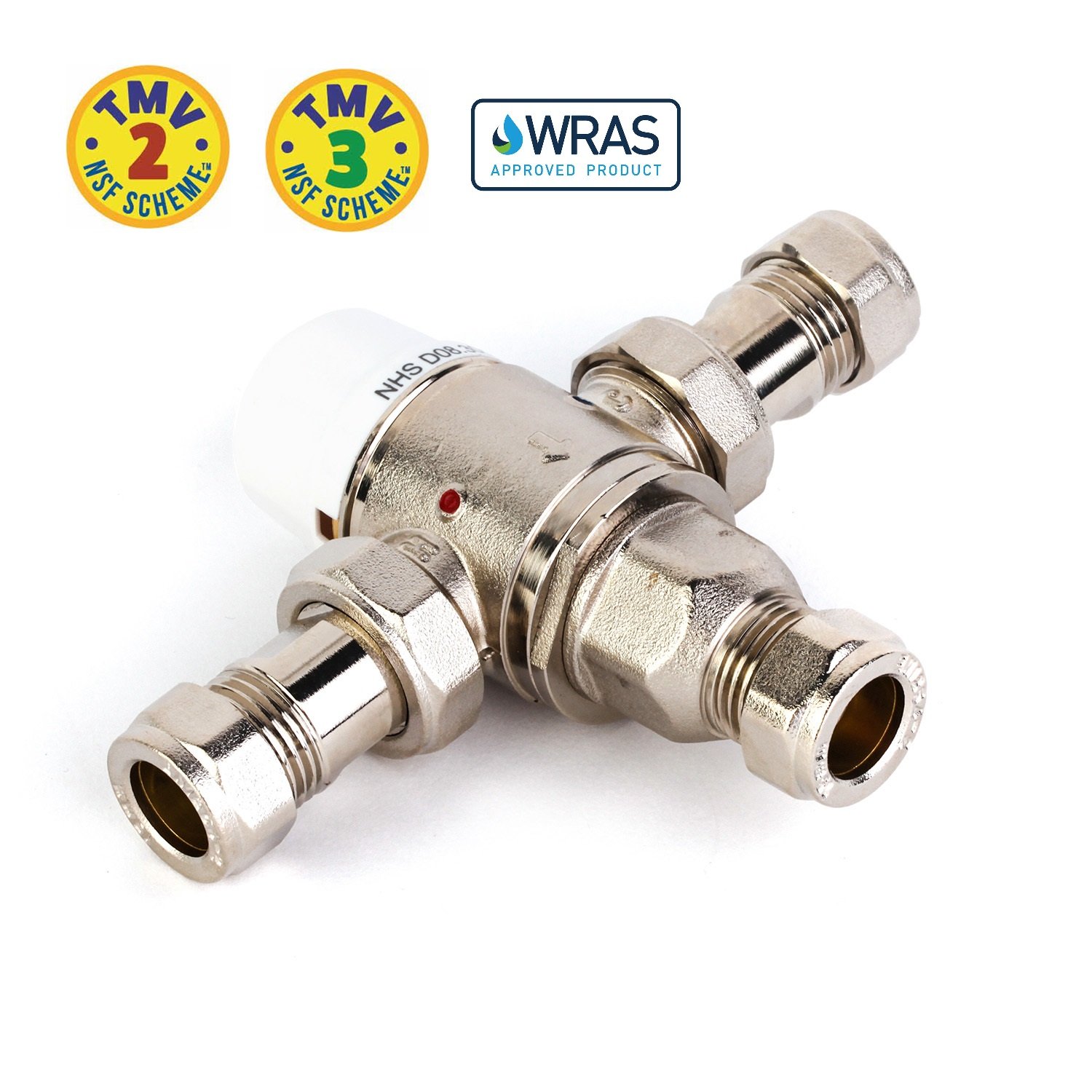

TMV2/3 Certificated Thermostatic Mixing Valve

HEAPE Valve is one of Thermostatic Mixing valves manufacturers in China since 2010. As a leading & professional China-based ball valve factory , our company manufacturing Thermostatic Mixing valve in different materials. Contact us today to request a free quote or more information.

REQUEST A QUOTE FOR MORE DETAILS

What is Thermostatix Mixing Valve?

A thermostatic mixing valve (TMV) is a device designed to blend hot and cold water to ensure a constant, safe outlet temperature, even when there are fluctuations in the supply pressures or temperatures of the hot and cold water.

These valves are crucial for preventing scalding and maintaining comfortable water temperatures, particularly in applications where consistent water temperature is critical, such as in residential, commercial, and healthcare settings.

Advantages of Thermostatic Mixing Valve

Safety

Protects against scalding and thermal shock.

Consistent Temperature

Maintains stable water temperature

Efficiency

Saves energy and water.

Regulatory Compliance

Meets health and safety standards.

User Comfort

Provides a comfortable water temperature.

Versatility

Suitable for various applications.

Reliability

Durable and easy to maintain.

System Protection

Prevents damage to plumbing systems.

Introduce Thermostatic Mixing Valve & Tempering Valve

A Thermostatic Mixing Valve (TMV) is a device designed to automatically blend hot and cold water to maintain a constant, safe outlet temperature, even when there are variations in the supply pressures or temperatures of the hot and cold water. TMVs are widely used in residential, commercial, and healthcare settings to prevent scalding and provide a consistent and comfortable water temperature.

Key Features of TMVs:

Temperature Control: Maintains a pre-set water temperature.
Safety Mechanisms: Includes anti-scald features that shut off hot water if the cold water supply fails, and vice versa.
Versatility: Suitable for use in bathrooms, kitchens, public restrooms, and healthcare facilities.
Compliance: Meets various safety standards (e.g., TMV2 for domestic use, TMV3 for healthcare settings).

Benefits:

Prevents Scalding: Protects users from sudden changes in water temperature.
Comfort: Ensures a consistent and pleasant water temperature.
Efficiency: Helps in saving water and energy by optimizing the use of hot water.
Reliability: Made from durable materials, designed for easy maintenance.

Applications:

Residential: Showers, baths, and washbasins.
Commercial: Public restrooms, schools, and office buildings.
Healthcare: Hospitals, nursing homes, and care facilities.

Overall, TMVs are essential for ensuring safety, comfort, and efficiency in various water heating applications

A Tempering Valve (TV) is a plumbing device used to mix hot and cold water to deliver water at a consistent, safe temperature. It is commonly installed in residential and commercial hot water systems to prevent scalding and ensure user safety.

Key Features of Tempering Valves:

Temperature Regulation: Mixes hot and cold water to achieve a set, safe temperature, typically around 50°C (122°F).
Basic Control: Provides stable temperature control, though less precise than Thermostatic Mixing Valves (TMVs).
Safety: Helps prevent scalding by limiting the maximum water temperature.

Benefits:

Prevents Scalding: Ensures water temperature remains safe for users, reducing the risk of burns.
Cost-Effective: Generally less expensive and simpler to install than TMVs.
Energy and Water Efficiency: Reduces energy consumption and water wastage by delivering water at the desired temperature quickly.

Applications:

Residential: Used in homes to regulate water temperature for showers, baths, and taps.
Commercial: Suitable for use in public restrooms, schools, and office buildings where basic temperature control is needed.

Tempering Valves are essential for providing safe, consistent hot water in various settings, helping to prevent scalding and enhance user comfort in a cost-effective manner.

Summary of Operation:

Temperature Sensing: The thermostatic element continuously monitors the temperature of the mixed water.
Automatic Adjustment: The element adjusts the piston/slide valve to regulate the mix of hot and cold water.
Stable Output: Ensures a consistent, pre-set water temperature at the outlet.
Safety: Includes mechanisms to prevent scalding and thermal shock in case of supply failures.

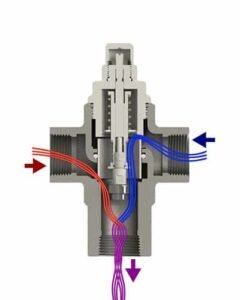

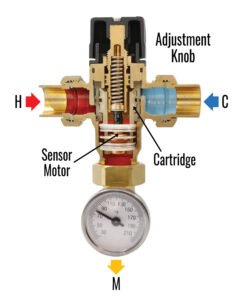

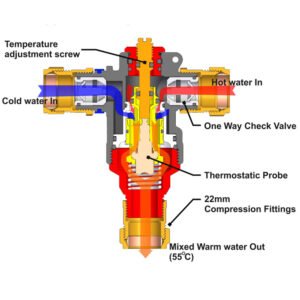

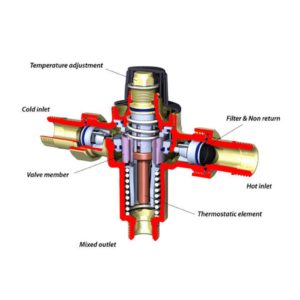

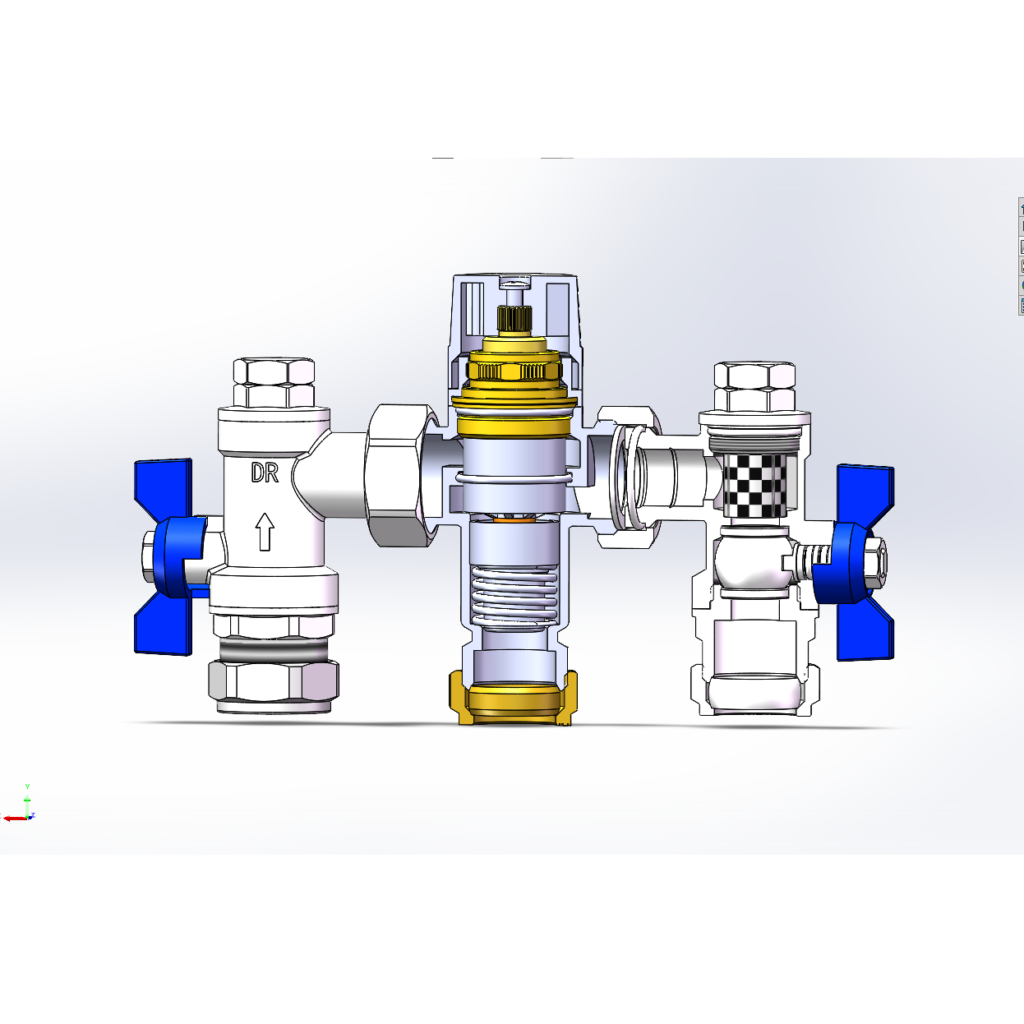

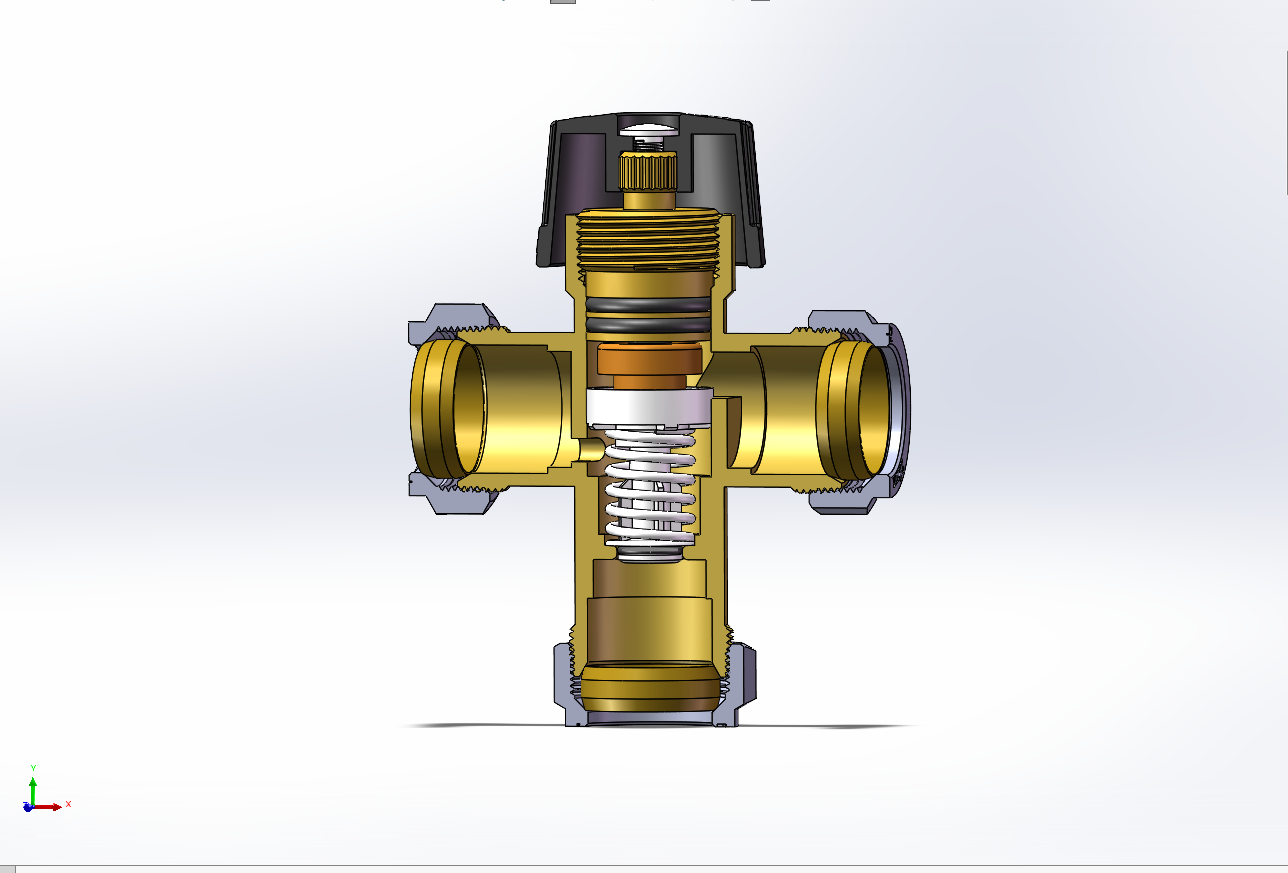

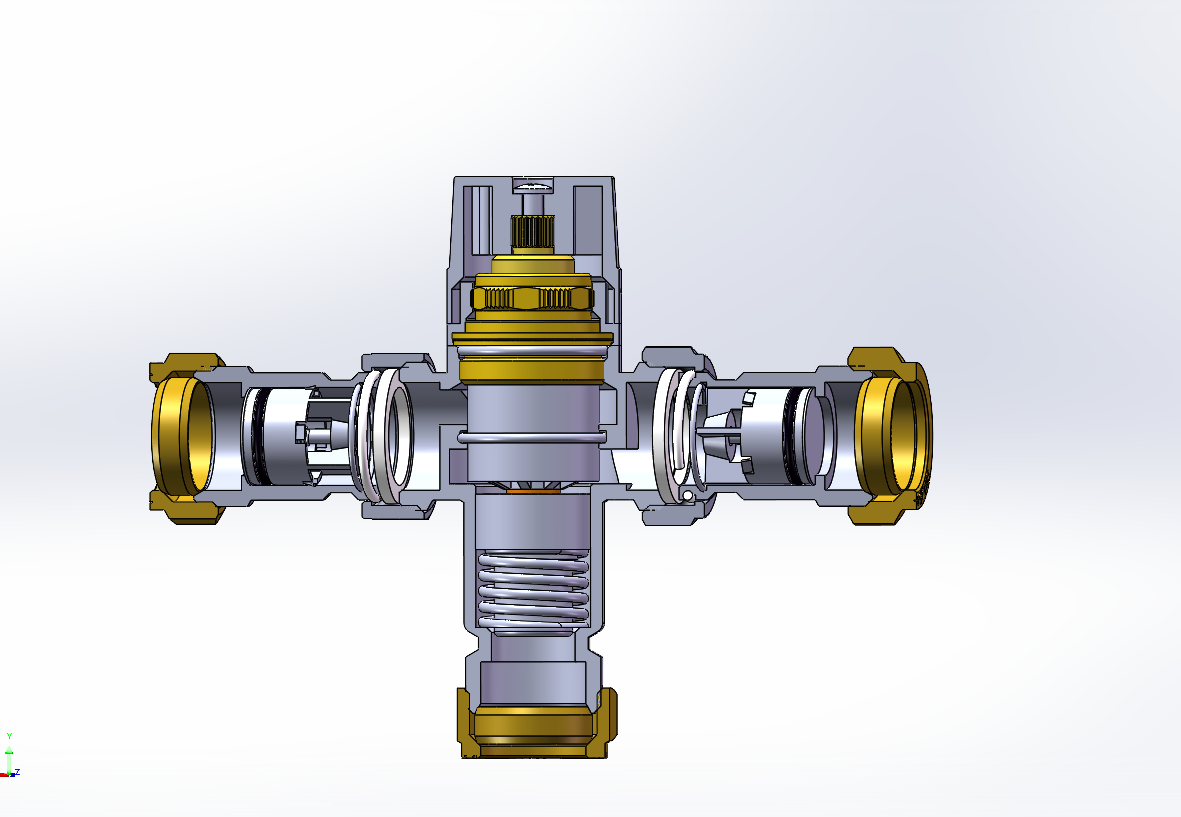

How does Thermostatic Mixing Valve Work?

How a TMV Works:

1 Water Inlet: Hot and cold water enter the TMV through their respective inlets.

2 Thermostatic Element Response: The thermostatic element senses the temperature of the mixed water. If the water is too hot, the element expands; if too cold, it contracts.

3 Piston/Slide Valve Adjustment: The movement of the thermostatic element causes the piston or slide valve to adjust, regulating the proportion of hot and cold water being mixed.

3.1 Hot Water Reduction: If the mixed water temperature is too high, the thermostatic element expands, pushing the piston to reduce the flow of hot water and increase the flow of cold water.

3.2 Cold Water Reduction: If the mixed water temperature is too low, the thermostatic element contracts, pulling the piston to reduce the flow of cold water and increase the flow of hot water.

4 Mixed Water Outlet: The adjusted mix of hot and cold water flows out of the valve at the desired, pre-set temperature.

5 Fail-Safe Mechanism: If the cold water supply fails, the TMV shuts off the hot water flow to prevent scalding. Similarly, if the hot water supply fails, it shuts off the cold water flow to prevent thermal shock.

Application of TMVs

Tools and Materials Needed:

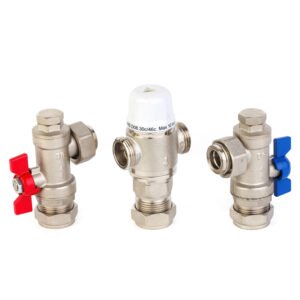

TMV kit (including the valve and fittings)
Adjustable wrench
Pipe cutter
Plumber’s tape (Teflon tape)
Screwdrivers
Pipe fittings and connectors
Isolation valves
Strainers and check valves (if not included in the TMV kit)
Thermometer
Allen key (if required for temperature adjustment)
Cleaning supplies

Installation of Thermostatic Mixing Valve

Step-by-Step Installation Guide

Preparation: Turn off water, drain system, and ensure compatibility.
Positioning: Select an accessible location close to outlets.
Pipework Preparation: Cut pipes, install isolation valves, and check valves.
Installing the TMV: Connect inlets and outlet, ensure watertight seals.
Securing the Valve: Mount securely and check for leaks.
Setting the Temperature: Adjust and lock the temperature.
Testing and Commissioning: Verify temperature stability and fail-safe operation.
Documentation: Record installation details and schedule maintenance.

By following these steps, you can ensure the TMV is installed correctly and safely, providing consistent and safe water temperatures. Always refer to the specific instructions provided by the TMV manufacturer for detailed guidance.

Maintenance of Thermostatic Mixing Valve

Step-by-Step Maintenance Guide
1. Preparation:
1. Turn Off Water Supply
2. Drain the System
2. Visual Inspection:
1. Check for Leaks
2. Inspect Valve Condition
3. Cleaning the TMV:
1. Remove the TMV: If necessary, remove the TMV from the pipework according to the manufacturer’s instructions.
2. Disassemble the Valve: Carefully disassemble the TMV, noting the position of each component.
3. Clean Components: Clean all components, including the thermostatic element, piston/slide valve, strainers, and check valves, using a non-abrasive cleaner. Remove any scale, debris, or deposits.
4. Inspect Seals and O-Rings: Check seals and O-rings for signs of wear or damage and replace them if necessary.
4. Thermostatic Element and Piston Maintenance:
1. Inspect Thermostatic Element: Check the thermostatic element for proper operation. If it shows signs of wear or does not respond correctly to temperature changes, replace it.
2. Check Piston/Slide Valve: Ensure the piston or slide valve moves freely and is not obstructed by debris or scale. Clean or replace it if necessary.
5. Reassembling and Reinstalling the TMV:
1. Lubricate Moving Parts: Apply a suitable lubricant to moving parts as recommended by the manufacturer.
2. Reassemble the Valve: Reassemble the TMV, ensuring all components are correctly positioned and secured.
3. Reinstall the TMV: Reinstall the TMV into the pipework, ensuring all connections are tight and secure.
6. Setting and Testing the Temperature:
1. Restore Water Supply
2. Adjust Temperature
3. Lock Temperature
7. Functional Testing:
1. Test Mixed Water Temperature
2. Test Fail-Safe Mechanism
3. Check Flow Rates

8. Documentation and Record-Keeping:

1. 1. Record Maintenance Details: Document the maintenance performed, including any parts replaced, the settings adjusted, and test results.
  2. Schedule Next Maintenance: Note the date of maintenance and schedule the next maintenance check according to the manufacturer’s recommendations, typically annually.

Regular Maintenance Tips:

Annual Checks: Perform a comprehensive check of the TMV at least once a year.
Periodic Testing: Regularly test the mixed water temperature and fail-safe mechanisms to ensure continued safe operation.
Water Quality: Maintain good water quality by installing and regularly cleaning strainers to prevent debris from entering the TMV.

7. Compatibility with Plumbing System:

Ensure the TMV is compatible with the existing pipework (e.g., pipe size and type).
Check if additional fittings or adapters are needed.

8. Safety Features:

Look for TMVs with fail-safe mechanisms that shut off hot water if the cold water supply fails and vice versa.
Ensure the valve has built-in check valves to prevent cross-contamination of hot and cold water supplies.

9. Material and Durability:

Select a TMV made from durable materials such as brass or stainless steel, which can withstand high temperatures and pressures.
Consider the environment in which the TMV will be used, such as areas with hard water or corrosive conditions.

10. Brand Reputation and Support:

Choose a reputable brand known for quality and reliability.
Check for available support, warranty, and spare parts.

How to Choose the ProperTMV/TV ?

Selecting a proper Thermostatic Mixing Valve (TMV) requires considering several factors to ensure it meets the specific requirements of your application. Here are the key considerations and steps to guide you in selecting the right TMV:

1. Determine the Application:

Residential: For homes, you might need TMVs for bathrooms, kitchens, and other areas where hot water is used.
Commercial: For schools, offices, public restrooms, etc., where there is a need for consistent water temperature control.
Healthcare: For hospitals, nursing homes, and other care facilities where safety and precision are critical.

2. Understand the Standards and Certifications:

TMV2 Certification: Suitable for domestic and commercial settings. Ensures the valve provides safe and stable temperatures.
TMV3 Certification: Required for healthcare and high-risk environments. These valves offer higher safety standards and are designed to prevent scalding in vulnerable populations.

3. Consider the Required Temperature Range:

Ensure the TMV can deliver the desired temperature range for your specific application. For example, typical temperature settings for:
- Wash basins and showers: Around 38-41°C (100-105°F)
- Baths: Up to 44°C (111°F)
- Healthcare settings: Often limited to 43°C (109°F) for bathing to prevent scalding.

4. Assess Water Pressure Conditions:

High Pressure: TMVs designed to work with high-pressure systems (BS EN 1111:2017 standard).
Low Pressure: TMVs suitable for low-pressure systems (BS EN 1287:2017 standard).
Ensure the selected TMV can operate effectively within the pressure range of your water supply.

5. Flow Rate Requirements:

Determine the flow rate needed for your application. This depends on the number of outlets and their usage patterns.
Check the TMV specifications to ensure it can handle the required flow rates without compromising performance.

6. Installation Location and Accessibility:

Choose a TMV that fits the physical space where it will be installed.
Ensure it is accessible for maintenance and adjustments.
